Specification:
✔️Type: DC-DC power supply
✔️Modulation method: Pulse frequency modulation (PFM)
✔️Input voltage: 36-72V
✔️Output voltage: 12 V
✔️Output current: 10A
✔️Work efficiency: 95%
✔️Output ripple noise: 1db
✔️Output voltage accuracy: 3%
✔️Voltage regulation rate: 2%
✔️ Load adjustment rate: 4%
✔️Working temperature: -45~80°C.

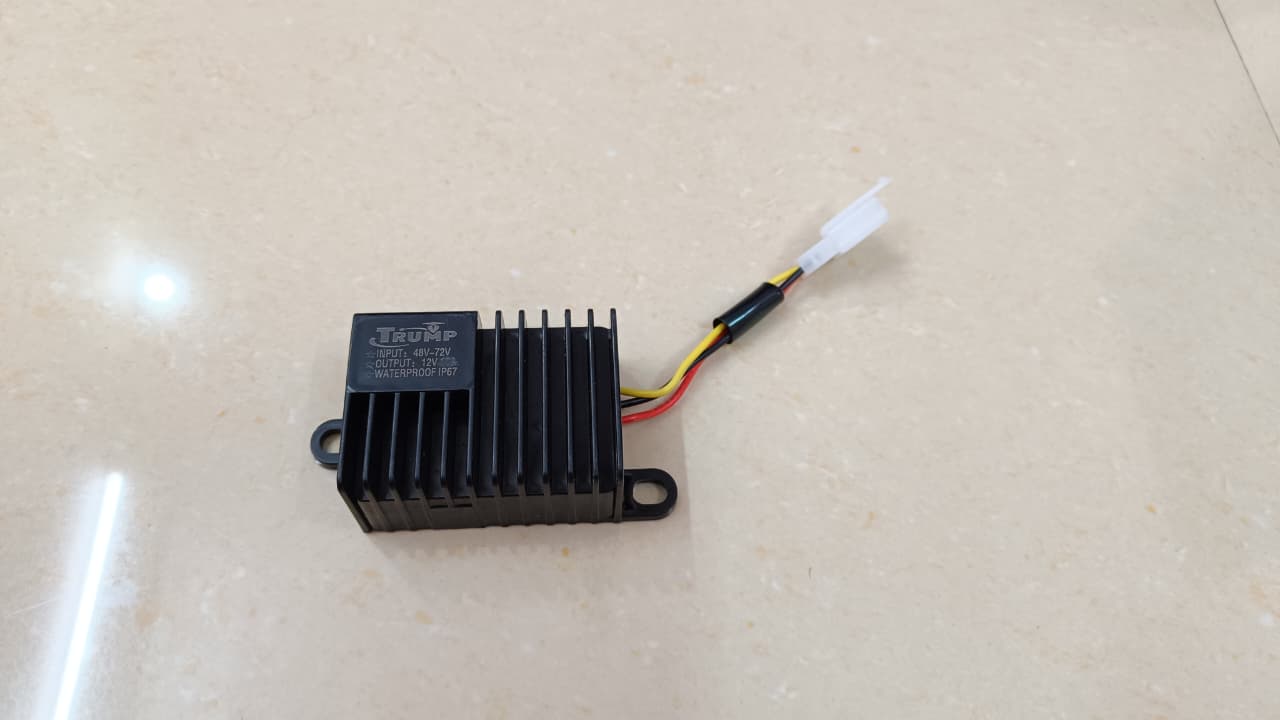

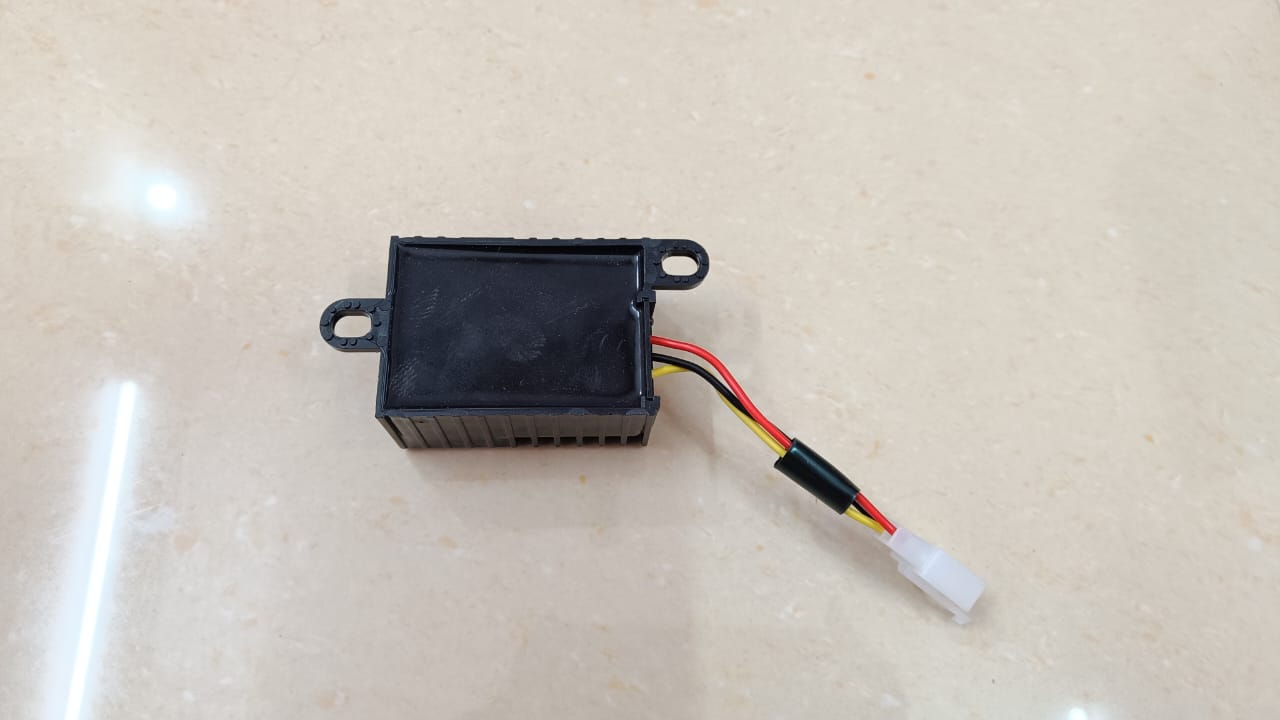

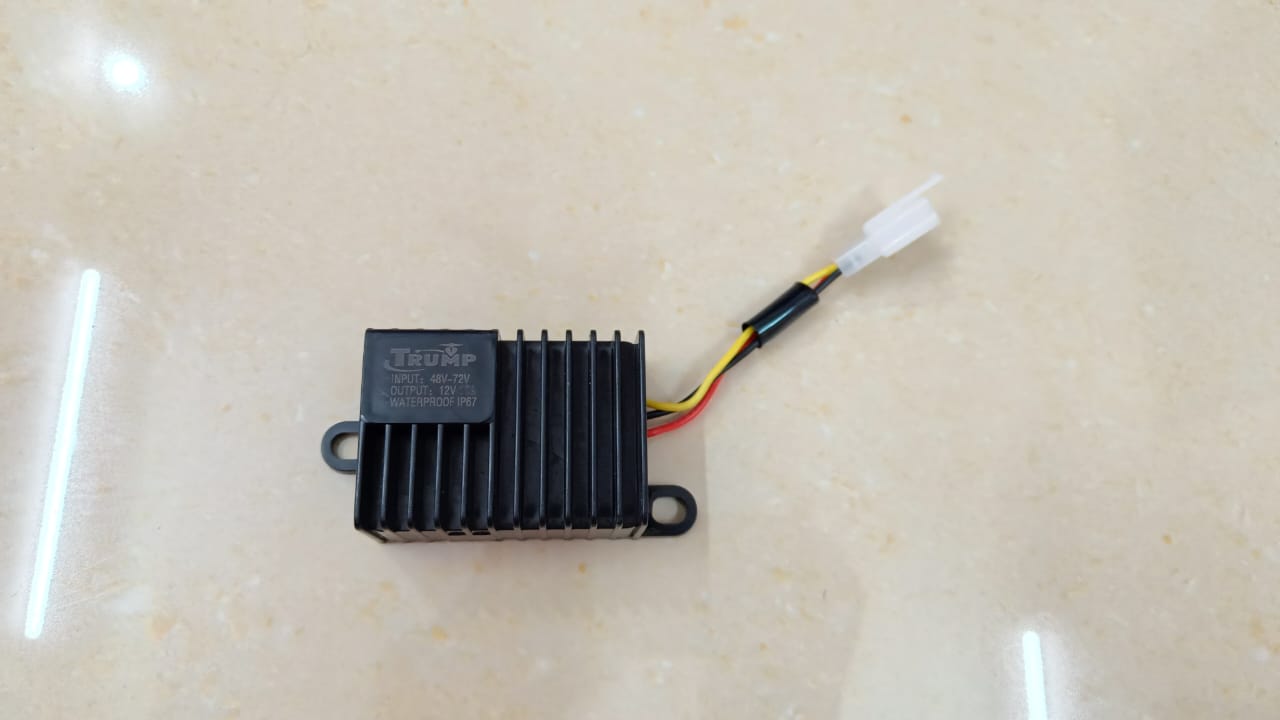

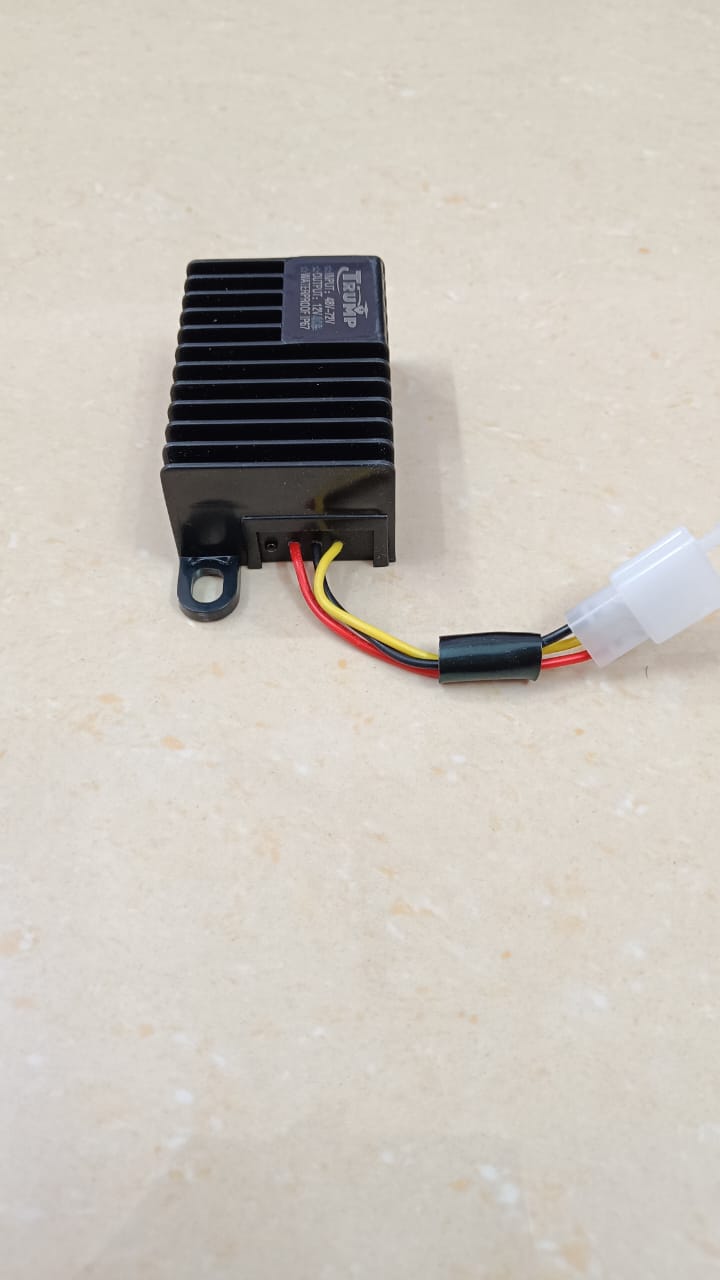

48v CONVERTER
FEATURES:
✔️ convert DC 48v to DC12v
✔️ Output current : 10a
✔️ Red wire : 48v input
✔️ Black wire : neutral
✔️ Yellow wire : 12v output.
CONNECTIONS:
1️⃣ Give 48v positive input in red wire and negative input in black wire.
2️⃣ you will get output of 12v from yellow wire, use same black wire for both input as well as for output.
